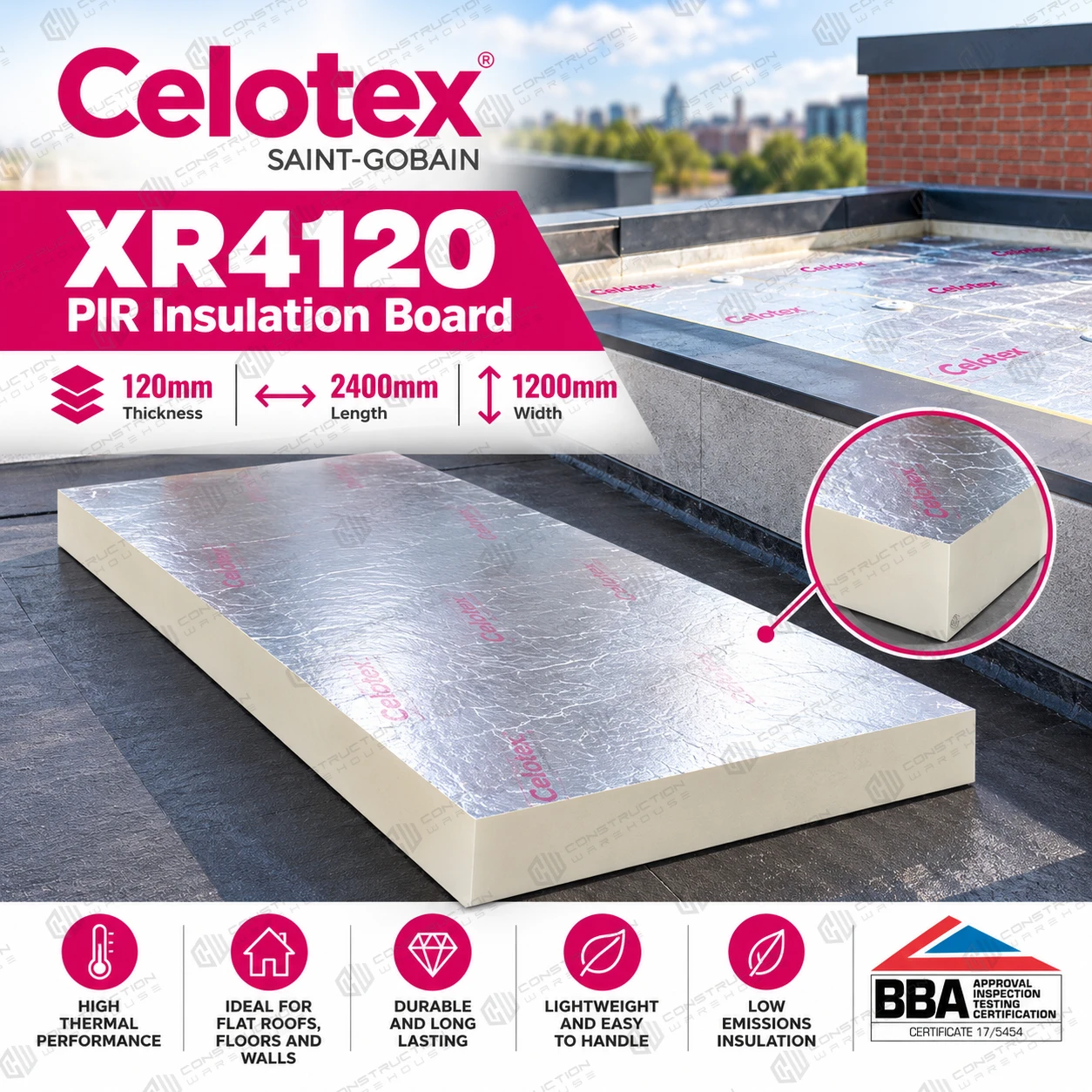

The 120mm Celotex XR4120 PIR Insulation Board is a high-performance thermal insulation board with composite foil facings. It is designed to minimize heat loss and create a thermal barrier in various applications such as roofs, floors, walls, and timber joists.

Part of the XR4000 range, the 120mm Celotex XR4120 offers "Extra Resistance" to heat transfer. It is made from rigid polyisocyanurate (PIR) using blowing agents with zero ozone depletion potential (zero ODP) and low global warming potential (GWP). With a low thermal conductivity of 0.022 W/m.K, it meets the current and future requirements of the Building Regulations.

Specifications

• Material: PIR
• Thickness: 120mm
• Width: 1200mm
• Length: 2400mm
• Purchase Unit: Board
• Coverage: 2.88m2
• Manufacturer's Code: XR4120
• Weight: 4.93kg/m2
• Thermal Conductivity: 0.022W/mK

Performance

The Celotex XR4120 PIR Insulation Board offers excellent thermal performance with a thermal conductivity of 0.022 W/mK. This allows for low U-values without the need for additional insulation layers. It is moisture-resistant and provides reliable long-term energy savings for buildings.

Features and Benefits

• Efficient Insulation: The 120mm Celotex XR4120 PIR Insulation Board has low thermal conductivity, ensuring effective insulation and reducing heat loss.
• Durable: This insulation board is moisture-resistant, making it suitable for use in areas prone to dampness or high humidity. It maintains its performance and structural integrity even in challenging conditions.
• Environmentally Friendly: With a low Global Warming Potential (GWP) and Zero Ozone Depleting Potential (ODP), this insulation board contributes to a sustainable and eco-friendly building solution.
• Enhanced Thermal Performance: The low emissivity foil facings on the board improve its thermal insulation performance, reducing heat transfer and improving energy efficiency.
• Flexible Installation: The Celotex XR4120 PIR Insulation Board is easy to cut and shape, allowing for precise fitting and installation in various applications. It provides flexibility in adapting to different construction requirements.
• Fire Resistant: This insulation board has excellent fire resistance properties, providing an added layer of safety and protection in buildings.
• Sound Insulation: The Celotex XR4120 PIR Insulation Board also offers sound insulation benefits, reducing noise transmission and creating a quieter and more comfortable indoor environment.
• Long Lifespan: Designed to withstand the test of time, this insulation board has a long lifespan, ensuring long-term insulation performance and cost-effectiveness.

Applications

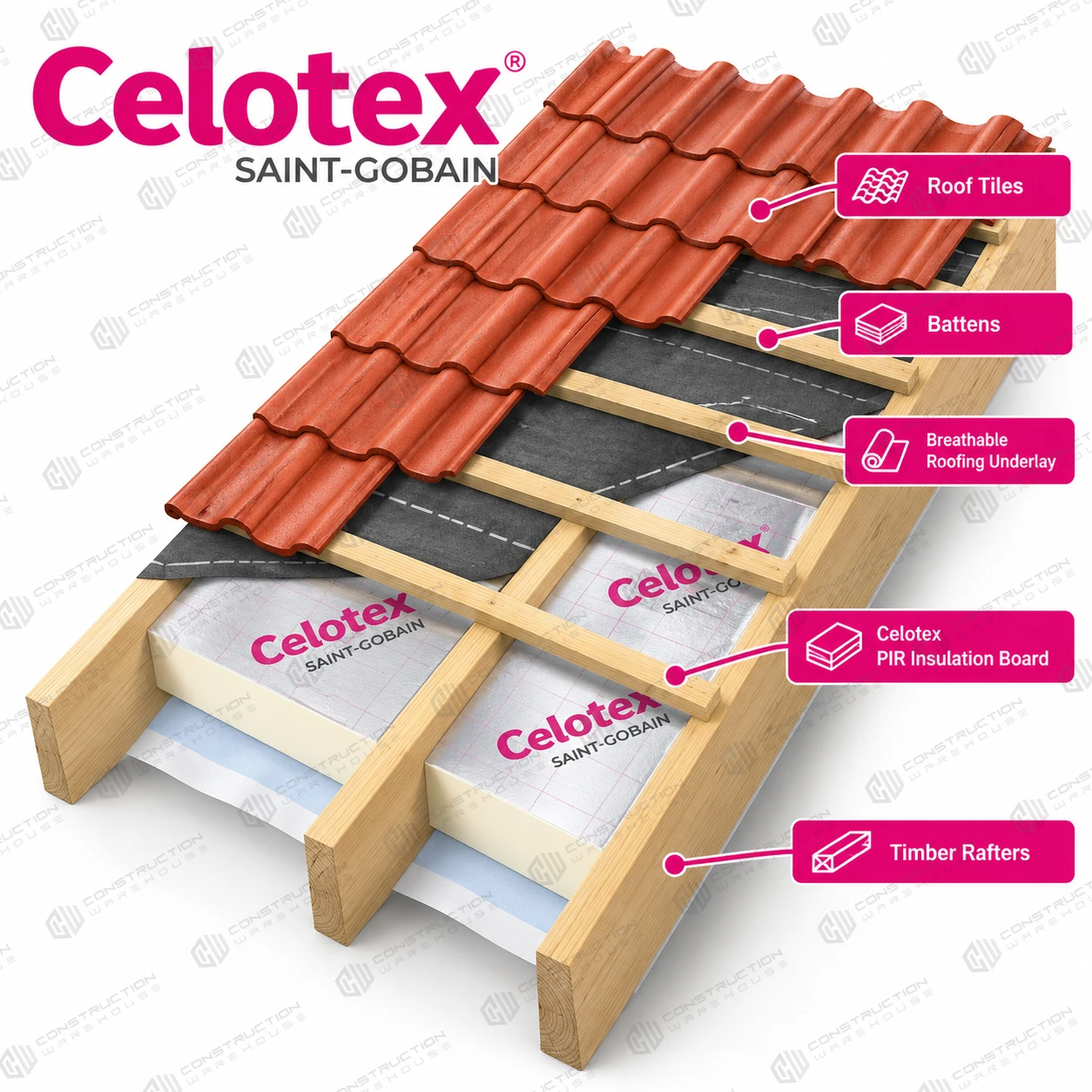

• Roof Insulation: The Celotex XR4120 PIR Insulation Board is commonly used for insulating roofs. It helps in reducing heat loss, thus keeping the building warm during winters and cool during summers.
• Floor Insulation: This product is also used for insulating floors. It provides a thermal barrier between the ground and the building, preventing cold air from entering through the floor.
• Wall Insulation: The Celotex XR4120 PIR Insulation Board can be used for insulating walls. It helps in maintaining a comfortable temperature inside the building, regardless of the weather conditions outside.
• Cavity Wall Insulation: This insulation board is suitable for cavity wall insulation. It fills the gap between the two walls, preventing heat loss and improving the energy efficiency of the building.
• Loft Insulation: The Celotex XR4120 PIR Insulation Board can be used for insulating lofts. It helps in reducing heat loss through the roof, thus keeping the loft warm and comfortable.

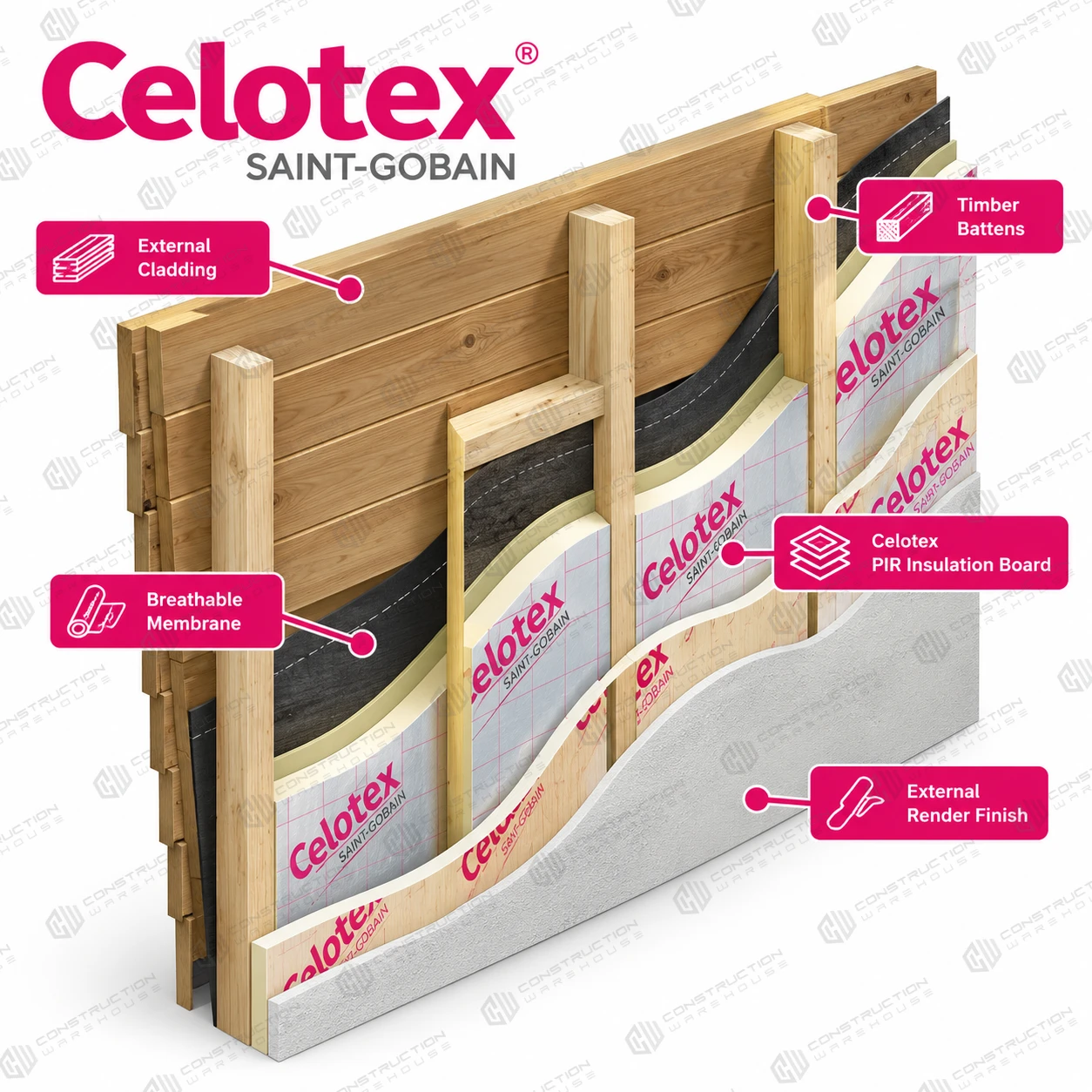

• Timber Frame Insulation: This product is also suitable for insulating timber frames. It provides a thermal barrier, preventing heat loss and improving the energy efficiency of the building.
• Soffit Insulation: The Celotex XR4120 PIR Insulation Board can be used for insulating soffits. It helps in preventing heat loss through the soffit, thus improving the energy efficiency of the building.

Installation

The Celotex XR4120 PIR Insulation Board is lightweight and easy to handle. It can be easily cut and shaped to fit the desired application. For best results, follow the manufacturer's installation guidelines and ensure proper fixing and sealing to achieve maximum thermal performance.

Certifications

The 120mm Celotex XR4120 PIR Insulation Board meets various British and European Standard Specifications. It has a Euroclass E Reaction to Fire classification for spread of flame according to BS EN 13501-1. It also has a thermal conductivity of 0.022 W/m.K, meeting BS EN 12667. Additionally, it has a BRE Green Guide Rating of A for sustainability and is BBA certified.

Equivalent/Related Products

• 120mm Kingspan Kooltherm K108 Cavity Board
• 120mm Ecotherm Eco-Versal PIR Insulation Board
• 120mm Xtratherm Thin-R XT/PR PIR Insulation Board

About Celotex

Celotex is a leading British manufacturer of PIR insulation. The XR4120 insulation board is part of the Celotex XR4000 product range, which includes various thicknesses from 110mm to 150mm. Celotex boards are manufactured with quality management systems and are water vapor resistant. They help achieve lower U-Values, energy use, and carbon dioxide emissions targets set by national building regulations.

Product Specifications

• Brand: Celotex
• Compressive Strength: ≥140kPa - BS EN 826
• Coverage: 2.88m2
• Length: 2400mm
• R Value: 5.45m2K/W
• Spread Of Flame: Class 1 - BS 476-7
• Thermal Conductivity: 0.022W/mK
• Thickness: 120mm
• Water Vapour Resistance: >150MNs/G - BS EN 12086: Method B
• featured product link: https://buildersinsulation.co.uk/categories/shop-all/popular-products.html
• Material Type: PIR
• Width: 1200mm
• Sales Unit: 2.88m2
• Sales Unit Coverage: 2.88m2
• Weight: 4.93kg/m2
• Protection type: 1
• Use Case: 1
